Technical specifications

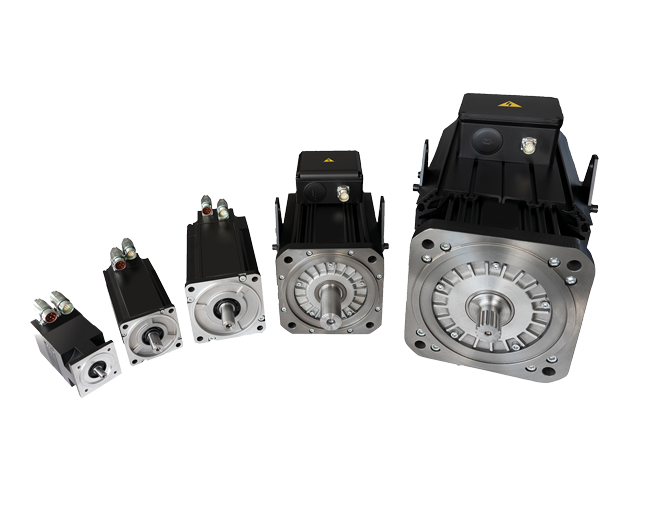

The BR series servomotors are designed to offer the highest dynamic performance and are used in applications such as CNC lathes, servopumps, metalworking machines, woodworking machines, plastic and rubber processing machines.
The use of Neodymium Iron Boron magnets with a high energy product makes it possible to obtain motors with high specific power capable of withstanding large overloads without the risk of demagnetisation.
The magnetic circuit has been designed to allow the motors to produce a sinusoidal F.e.m. with reduced torque ripple.
The low rotor inertias guarantee the possibility of high acceleration and deceleration.
Standard features
• Winding: three-phase star without accessible neutral
• Winding insulation: class H according to CEI 2-3 (2000)
• Dimensioning: class F (dTmax=105K) according to CEI EN 60034-1 (2000)
• Degree of protection: IP54 according to CEI EN 60034-5 (2001)
• Position sensor: 2-pole resolver
• Cooling: IC 410 (motor without servo-ventilation), IC 416 (servo-ventilated motor) according to CEI EN 60034-6 (1997)
• Grade of balancing: G 2.5 in accordance with ISO 1940-1 (1993) (balancing with half key for shafts with key CEI 2-23 (1993))
• Bearings: lubricated for life
• Thermal protection: thermal protector with normally closed contact. Operating temperature 130±5°C. (Maximum voltage 250Vac , maximum current 5Aac)
• Construction type: IM B5 according to CEI EN 60034-7 (1993)
• Operating position: any
• Colour: black RAL 9005
• Reference conditions: ambient temperature +40°C, max. altitude 1000m a.s.l.
• Storage temperature: -10°C ÷ +70°C
• Reference switching frequency: 8kHz
Options
• Position sensor:
- digital encoder + Hall probes,,
- sinusoidal encoder,
- EnDat absolute encoder,
- Hyperface absolute encoder,
- DSL encoder,
- Biss encoder
• Degree of protection: IP65 (refer to data in manual)
• Flying connector for power and signal IP54 or IP65
• Parking brake
• Keyless shaft
• Design: IM B35 according to IEC EN 60034-7 (1993)
• Oil seal (to be requested only if oil bath coupling is envisaged)
• Oil drain hole (for size 8 and 9)
• Special executions according to customer specifications
Series
Customized products available
Motors
BR03
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 0,2 to 1,5
from 0,6 to 2,3
9
6000
75
Download PDF Sheet
Motors
BR05
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 0,4 to 3,2
from 1,7 to 9,6
34,5
4000
100
Download PDF Sheet
Motors
BR07
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 0,9 to 7
from 5,4 to 33,5
100
3000
142
Download PDF Sheet
Motors
BRV7
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 1,2 to 12,3
from 6,3 to 49
120
3000
142
Download PDF Sheet
Motors
BR08
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 3,3 to 20,4
from 29,5 to 90
290
3000
200
Download PDF Sheet
Motors
BRV8
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 4,5 to 43
from 43 to 154
400
3000
200
Download PDF Sheet
Motors
BR09
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 9,8 to -
from 60 to -
530
3000
270
Download PDF Sheet
Motors
BRV9
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 15 to 93,8
from 117 to 530
1100
3000
270
Download PDF Sheet
Motors
BRW9
• Power (kW)
• Rated torque (Nm)
• Peak torque (Nm)
• Maximum speed (rpm)
• Flange square (mm)
from 17,5 to 129
from 167 to 720
1100
2600
270
Download PDF Sheet
