Products

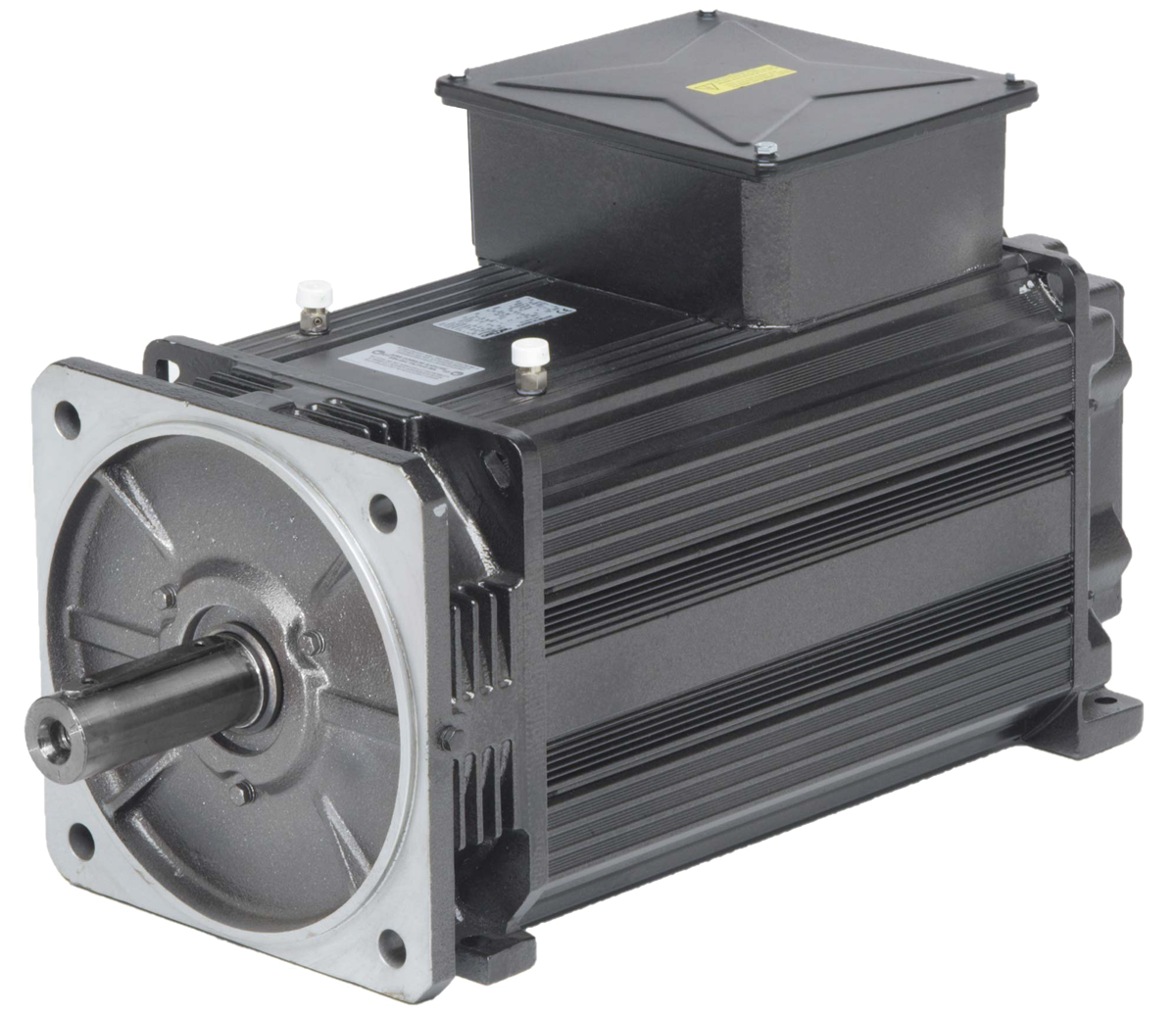

VR Series
Reluctance motors
Specifications and strengths
Reluctance motors are high-performing, offering high energy efficiency, greater sustainability, and lower noise levels than traditional asynchronous motors.
A very important feature of VR motors is that they are developed with a square mechanical shape, which makes them much more compact for the same power compared to classic round motors, offering a very high power/size ratio and making them easily interchangeable.
These motors are used in fields where the load rotates at a fixed speed but also where variable speed control is required, in the speed control of pumps, fans, compressors, and in various industrial applications.
The main strength and distinguishing feature of this type of motors is linked to the peculiar characteristic of being designed and approved to have certified insulation on the OBJ-Y2/8 winding.
The main strength and distinguishing feature of this type of motor is linked to the peculiar characteristic of being designed and approved for UL certification.
Standard features
• Winding insulation: class H according to IEC EN 60034-1
• Thermal rating: class F according to CEI EN 60034-1
• Protection rating: IP54 for the entire range
• Cooling: IC 416 with axial fan (radial fan on request)
• Construction type: B3-B35
• Mounting position: horizontal or vertical
• Lifetime lubricated ball bearings
• Thermal protection: thermal protector with normally closed contact. Intervention temperature 150 ± 5°C
• Colour: black RAL 9005
• Reference conditions: ambient temperature from +5°C to +40°C, max. altitude 1000 m above sea level
• Storage temperature: -20°C to +70°C
New strength
1- Motors approved for insulation certified OBJ-Y2/8
2- Liquid-cooled motors (VAW)
